| 起源の場所: | 広東省、中国 |
| モデル番号: | K35W |
| 最小注文数量: | 1 |
|---|---|
| 価格: | 1-100000 USD |
| パッケージの詳細: | 標準のパッケージングを使用するか、顧客の要求に応じて |
| 受渡し時間: | 15~20日 |
| 支払条件: | ウェスタンユニオン、T/T、D/P、D/A、L/C |
| 供給の能力: | 10000/月 |
| Standard: | Compliant With Most Banking Standard Specifications | OS: | Microsoft Windows 10/Windows 11 |
|---|---|---|---|
| CPU: | Support Intel Core i5/i7 | RAM: | Support 8/16/32 GB Memory |
| HDD: | Max. 1 TB Hard Disk | Communication: | RJ45, WIFI, X.25, etc. |
| Power: | AC 220v~240v, 50~60 Hz, Surge Protection, UPS (opt.) | Cash Bag: | 4 Cash Out Units, 1 Reject/retract Unit |
| Capacity: | The Cash Out Unit Supports Up To 310 Mm Thick Banknotes, The Reject Unit Supports Max. 400 Banknotes, And The Retract Unit Supports Max. 100 Banknotes. Up To 60 Banknotes Per Transaction, 6-8 Banknotes/second, Single Reject Switch | OCR: |
Support Banknote Serial Number Recognition (opt.) |
| Warranty: | 90 Days,One Year,3 Months,2% Spare Parts,1 Year | Product Name: | ATM Machine,CDS6060,IR Touch Monitor,Hyosung 5600T Cash Cassette,Bitcoin ATM Cash Payment BitCoin Vending Machine |
| Color: | Optional,Customized,grey,Blue Or Customize,Black | Shipment: | By Express/by Air/by Sea,Express,air,sea,DHL Fedex UPS TNT |
| Condition: | New Original,used Or Refurbished,New Original&OEM&Refurbished | Touch Screen Type: | IR,SAW,IR / SAW /Capacitive Screen,IR Or SAW Touch Screen,capacitive/SAW/infrared Touch |
| Power Supply: | AC110V-240V,110V,60HZ,220V Or Upon Clients,50Hz-60Hz Upon Clients | Material: | Plastic Material,mixed,Mental/palstic |
| Function: | Deposit & Withdrawal,Payment Kiosk,Self-service Query And Advertising Player,card Dispenser,Bill Acceptor | Kiosk Color: | Blue,Blue Or Customized,Accept Color Customized),Black,White |
| Warranty Period: | 12month For Components Since Shipment,1 Year (12 Monthes) |
2. Core Technical Specifications
|
Category |
Key Parameters |
|
Software |
Flexible with different protocols like: API, ISO8583, Java, etc. |
|
Controlling Unit |
OS: Microsoft Windows 10/Windows 11 |
|
Communication |
RJ45, WIFI, X.25, etc. |
|
Display |
15" TFT Color LCD Touch Screen, Privacy Filter (opt.), Sunlight Readable |
|
Power Supply |
AC 220v~240v, 50~60 Hz; Surge Protection; optional UPS |
|
Security |
Lock: Key Lock |
|

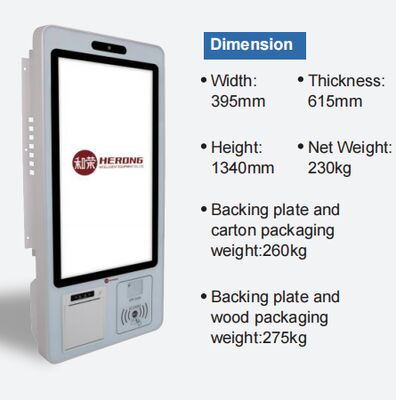

Dimensions |
Width: 395mm; Thickness: 615mm; Height: 1340mm |
|
Weight |
Backing plate and carton packaging weight: 260kg |
4. Core Functional Modules
· Additional Modules: SIU Control Board, Fan, Heater (opt.)
5. Environmental & Reliability Indicators
· Work Environment:
· Temperature: -10°C~ +65°C (+14°F~ +149°F) (indoor), -35°C~+75°C (-31°F~+167°F) (outdoor with heater)
· Humidity: 20%~85% (no condensation).
· Storage Environment:
· Temperature: -20°C~+85°C (-4°F~+185°F).
· Humidity: 5%~90% (no condensation).
· Lighting: Device Guidance Light, Status Indicator Light, optional LED Electronic Screen Light/Logo Light.
6. Product Advantages

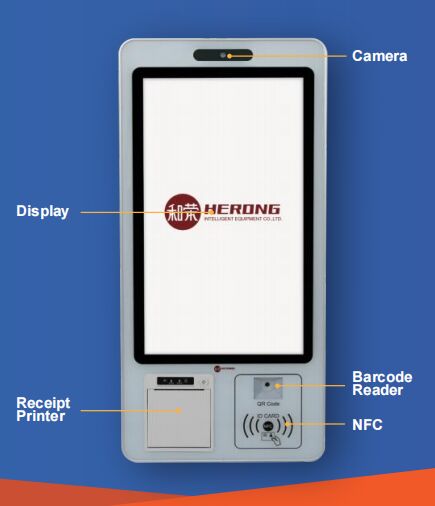

· Security: K35W delivers superior security for users, featuring a facial recognition camera along with EMV and PCI compliance.
· Flexibility: K35W features a modular design. It supports a variety of optional modules, allowing users to customize according to their individual needs.
· User-Friendly: K35W features a highly humanized design, including chamfered corners, arear status indicator light and so on. And it supports the majority of SWITCH's online transactions.
·Display : 15" TFT Color LCD Touch Screen, Privacy Filter (opt.), Sunlight Readable
· Receipt Printer: Graphic Thermal Receipt Printer, E-journal
· Light:Device Guidance Light, Status Indicator Light, LED Electronic Screen Light (opt.), Logo Light (opt.)
